Cast-In Heaters
Cast-In Heaters
Robust Heating Solutions for Industrial Molding & Extrusion Applications

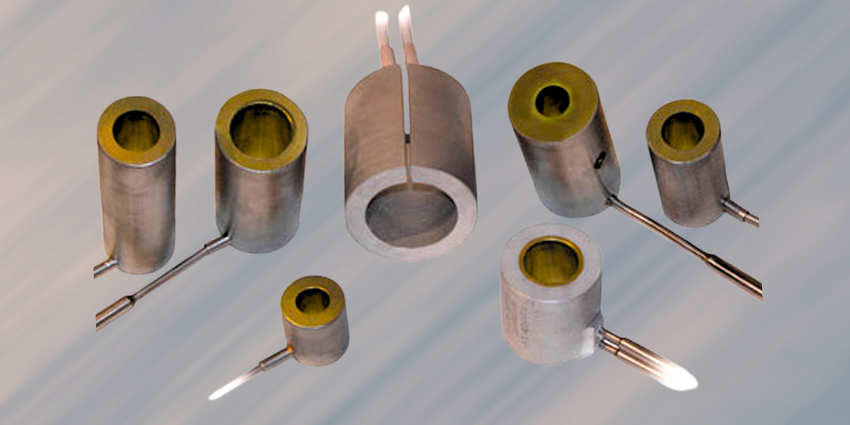

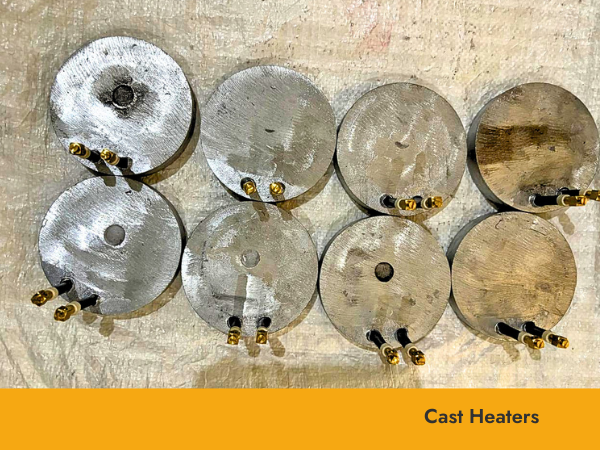

Calgen Cast-In Heaters are custom-engineered heating elements cast into solid aluminum or iron blocks, delivering efficient and uniform heat transfer for heavy-duty industrial processes. Designed to meet precise thermal requirements, these heaters are ideal for applications where consistent surface heating and mechanical stability are crucial.
Calgen Cast-In Heaters are widely used across a range of high-performance industrial heating applications, including:
Platens and Hot Plates
Extruder Nozzle and Barrel Heating
Die Head Heating for Extrusion Machines
Plate-Type Mould Heaters
Base Heaters for Soft Metal Melting Pots
Salt Baths and Other Thermal Processing Equipment
Design Features
Custom Formed Elements: One or more rod heating elements are shaped as per the application and cast into solid aluminum or iron blocks.
Machined Finish: The cast block is supplied with a smooth, machined finish to ensure excellent thermal contact and durability.
Integrated Components: Options to incorporate flat or shaped castings, fixing holes, and thermostats based on application requirements.
Protected Terminals: Terminals are securely housed and protected with a dedicated terminal cover for safety and reliability.
Optional Fittings: Terminal housings, scraping earth sockets, or Reyrolle plug arrangements available on request.
Technical Specifications
- Minimum Finished Thickness: ¾ inch
- Standard Casting Sizes: Up to 24″ x 24″ (larger sizes available on request)
- Materials: Cast aluminum or cast iron based on thermal and environmental requirements
Custom Manufacturing
Each Cast-In Heater is built to order, ensuring a perfect match for your specific industrial application. Our engineering team works closely with clients to ensure that all dimensional, thermal, and electrical requirements are fully met. Whether you’re heating a complex die head or maintaining uniform heat on a large platen, Calgen Cast-In Heaters provide the durability and thermal performance your op
