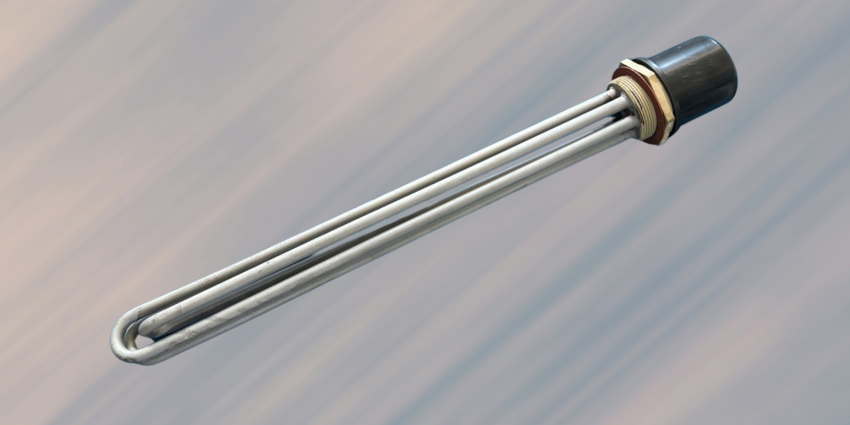

Immersion Heaters
Immersion Heaters
Efficient Heating for Liquids
Looking for a reliable and efficient way to heat liquids in tanks or containers? Our Calgen Immersion Heaters are designed for both industrial and domestic use, offering excellent performance across a wide range of applications.
Features our product line includes:
Applications

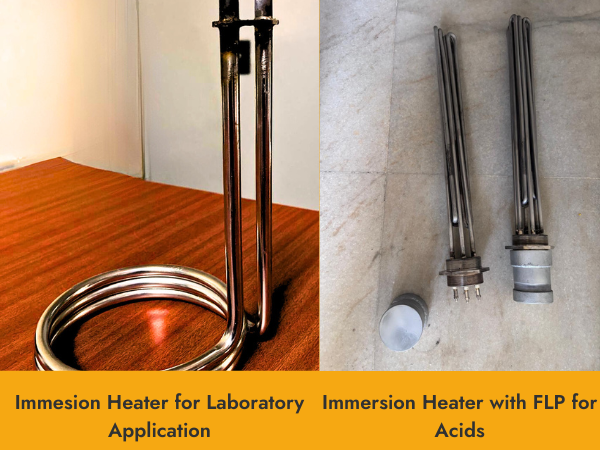

Ideal for heating water, oils, acids, tars, waxes, and paraffin in storage tanks, process tanks, and containers. Available with sheath materials like stainless steel (304, 316, 310), lead bonded, glass, silica, mild steel, and titanium to suit specific needs.Design Features

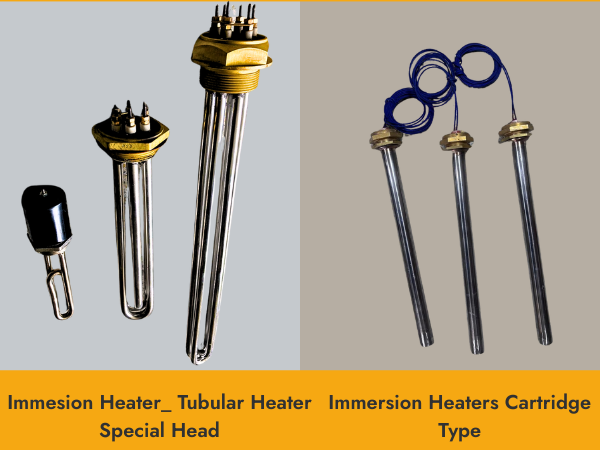

Horizontal Mounting: Easy to install with replaceable heating elements.Robust Construction: General-purpose models come with 1″ to 2.5″ BSPT heads; heavy-duty versions with a 6″ mounting flange.
Custom Solutions: Manufactured based on customer requirements with flexible sizing options.
Technical Specifications
General-Purpose Models: 1 5/8″ nickel-plated brass sheath, lengths from 16″ to 36″.Heavy-Duty Models: 2″–2.5″ mild steel or optional SS/glass/titanium sheaths; lengths from 12″ to 96″.
Power Range: 5 to 15 watts/in², suitable for single or three-phase supply.
Temperature Control: Thermostat range of 30–90°C, with higher ranges available using contactors.
Product Variants
Domestic Water Immersion Heaters
Wattage: 1000W to 3000W
Voltage: 230V
Mounting: 1.25” BSPT
Depth: 220mm to 425mm
Industrial Water Immersion Heaters
Wattage: 1000W to 9000W
Voltage: 230/415V
Mounting: 1.25” to 2” BSPT
Depth: 220mm to 550mm
Oil Immersion Heaters
Wattage: 1000W to 9000W
Heavy-duty with 2.5” BSPT flanges
Available with or without thermostats
Kettle Elements & U-Shaped Water Heaters
Designed for compact installations
Wattage: 250W to 3000W
Easy to mount with M12/M15 nipples
Why Choose Calgen Immersion Heaters?
Built for durability and energy efficiency. Customizable for your heating needs. Approved and tested for industrial-grade performance
Water Immersion Heaters (Domestic)
Heating elements can be supplied either in SS or copper and also with or without thermostat.| Type | Watts | Volts | Imm. Depth | Flange |
|---|---|---|---|---|
| CWH/C/10/22 D | 1000 | 230 | 220 | 1.25”BSPT |
| CWH/C/15/220D | 1500 | 230 | 220 | 1.25”BSPT |
| CWH/C/20/325 D | 2000 | 230 | 325 | 1.25”BSPT |
| CWH/C/30/425 D | 3000 | 230 | 425 | 1.25”BSPT |
Water Immersion Heaters (Industrial)
Heating elements can be supplied either in SS or copper and also with or without thermostat.| Type | Watts | Volts | Imm. Depth | Flange |
|---|---|---|---|---|
| CWIH/I/20/220 D | 1000 | 230 | 220 | 1.25”BSPT |
| CWIH/I/20/220 D | 2000 | 230 | 220 | 1.25”BSPT |
| CWIH/I/30/280 D | 3000 | 230 | 280 | 1.25”BSPT |
| CWIH/I/30/220 D | 3000 | 230/415 | 220 | 1.25”BSPT |
| CWIH/I/30/220 D | 3000 | 230/415 | 220 | 1.50”BSPT |
| CWIH/I/40/260 D/T | 4000 | 230/415 | 260 | 2” BSPT |
| CWIH/I/50/320 D/T | 5000 | 230/415 | 320 | 2” BSPT |
| CWIH/I/60/380 D/T | 6000 | 230/415 | 380 | 2” BSPT |
| CWIH/I/90/550 D/T | 9000 | 230/415 | 550 | 2” BSPT |
Kettle Elements
| Type | Watts | Volts | Imm. Depth | Flange |
|---|---|---|---|---|
| CKE/10/115 | 1000 | 230 | 115 | 1.25”BSPT |
| CKE/15/115 | 1500 | 230 | 115 | 1.25”BSPT |
| CKE/20/115 | 2000 | 230 | 115 | 1.25”BSPT |
| CKE/25/135 | 2500 | 230 | 135 | 1.25”BSPT |
| CKE/30/160 | 3000 | 230 | 160 | 1.25”BSPT |
U Shaped Water Heaters
Temperature control: Normally 30-90deg can be controlled by in-built thermostat, beyond 90deg temp/. (Controlled by contactor).| Type | Watts | Volts | Vertical Length | Nipples |
|---|---|---|---|---|
| CUWH/.25/220 | 250 | 230 | 220MM | M12/M15 |
| CUWH/.50/220 | 500 | 230 | 220MM | M12/M15 |
| CUWH/.75/220 | 750 | 230 | 220MM | M12/M15 |
| CUWH/10/220 | 1000 | 230 | 220MM | M12/M15 |
| CUWH/15/220 | 1500 | 230 | 220MM | M12/M15 |
| CUWH/20/220 | 2000 | 230 | 325MM | M12/M15 |
| CUWH/25/220 | 2500 | 230 | 380MM | M12/M15 |
| CUWH/30/220 | 3000 | 230 | 430MM | M12/M15 |
Oil Immersion Heaters
Temperature control: Normally 30-90deg can be controlled by in-built thermostat, beyond 90deg temp/. (Controlled by contactor).Oil immersion heaters can be supplied in different flanges like 1.25”/1.5”/2” & in circular flanges with/without thermostat.
| Type | Watts | Volts | Imm. Depth | Flange |
|---|---|---|---|---|
| COIH/10/435 | 1000 | 230 | 435 | 2.5”BSPT |
| COIH/15/435 | 1500 | 230 | 435 | 2.5”BSPT |
| COIH/20/435 | 2000 | 230 | 435 | 2.5”BSPT |
| COIH/30/435 | 3000 | 230/415 | 435 | 2.5”BSPT |
| COIH/40/575 | 4000 | 230/415 | 435 | 2.5”BSPT |
| COIH/50/575 | 5000 | 230/415 | 435 | 2.5”BSPT |
| COIH/60/575 | 6000 | 230/415 | 435 | 2.5”BSPT |
| COIH/90/575 | 9000 | 230/415 | 435 | 2.5”BSPT |
