MICA Band Heaters

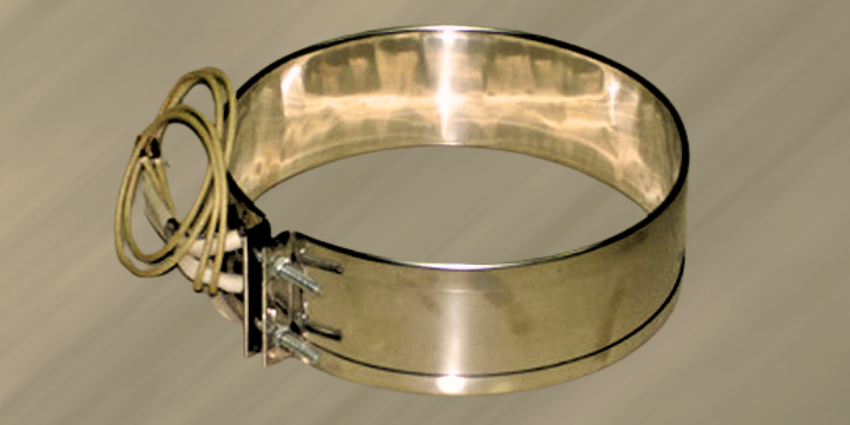

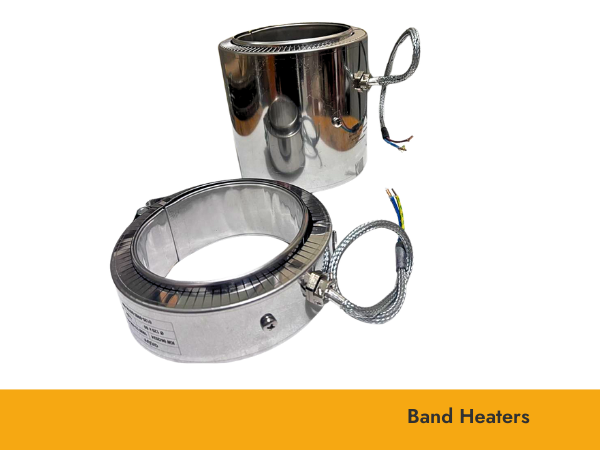

MICA Band Heaters
Efficient & Reliable Heating for Cylindrical Surfaces
Looking for a cost-effective heating solution for barrels, nozzles, or tanks? Our Mica Band Heaters are perfect for applications that require consistent, medium-temperature heating with long-lasting performance and energy efficiency.
High-Purity Mica Insulation
The core is built with premium mica sheets known for their great thermal conductivity and temperature resistance.
How They’re Made?
Nickel-Chrome Resistance Wire
A helically wound wire is sandwiched between mica layers to generate uniform heat when powered.
Durable Metal Sheath
A stainless steel or aluminized steel casing protects the internal elements and distributes heat evenly across the surface.
Optional Ceramic Fiber Insulation
Some variants come with extra insulation for better energy efficiency and reduced heat loss.
Sealed Designs Available
Nozzle heaters can be fully sealed to prevent plastic material ingress, ensuring a longer lifespan and safer operation.
Where Can You Use Them?
Our mica band heaters are widely used for:
- Injection moulding and extrusion machines
- Blow moulding equipment
- Drum and circular tank heating
- Internal diameter heating (custom designs available)
- They’re suitable for all cylindrical heating needs in plastic processing, packaging, and other industrial applications.
Design Features & Options
You can customize your heater with:
- Hinged or split band heaters for easier installation
- Flexible or elliptical designs
- Slide clips or separate clamping bands
- Two or three heat zones for targeted control
- Thermocouple holes and slots for temperature monitoring
Technical Details at a Glance
- Diameter Range: From 1″ to 20″ (wider diameters available in split types)
- Width Options: From ¾” up to 12″
- Surface Ratings: Up to 15 W/sq. inch
- Minimum Installation Gap: ¼” (cold)
- Terminations: 24″ insulated leads as standard
- Alternate Options: Terminal housing, scraping earth socket, or Reyrolle plug
- Nozzle Heater Protection: Comes with 3″ metal sheath at the lead entry point
- Pro Tip: For best performance, the diameter should be greater than the width.
Why Choose Our Mica Band Heaters?
✅ Excellent heat transfer with even distribution
✅ Designed for long service life and consistent performance
✅ Energy-efficient and low maintenance
✅ Easy to install, remove, and customize
✅ Available in a variety of shapes and sizes
Let’s Help You Find the Right Fit
Let’s Help You Find the Right Fit Need help selecting the perfect mica band heater for your machine? We’re here to guide you. Just tell us your specifications—diameter, width, wattage, voltage, and any custom requirements—and we’ll get you exactly what you need.
