Industrial Strip Heaters
Reliable Surface Heating for Industrial and Commercial Applications
India Heaters, under the renowned brand name Calgen, provides high-performance heaters specifically designed for cold-room applications. Our cold-room heaters ensure efficient frost prevention, temperature regulation, and seamless operation in refrigerated environments, essential for preserving product integrity and operational efficiency.
Applications, Strip heaters are widely used in:
Platens and hot plates
Plastic mould heating
Heat sealing machinery
Oven and duct heating systems
Whether for processing, packaging, or heating equipment, our strip heaters ensure optimal thermal performance across flat surfaces.
Design Features : Designed with industrial efficiency in mind, our strip heaters offer:
Sheath Material Options: Choose from Brass, Galvanized Iron (GI), Stainless Steel (SS), or Zinc, offering excellent resistance to corrosion and wear.
Fin Material: Available in Stainless Steel or Zinc-Plated Mild Steel (MS) for enhanced heat dissipation.
Smooth Surface Finish: Ensures complete contact with surfaces, promoting efficient heat transfer and easy installation.
- Graded Heating Options: Available upon request for temperature-specific applications across different heater zones.
Insulation Choices:
- Mica Insulation – Suitable for temperatures up to 250°C.
- Refractory Insulation – Designed for operations up to 450°C sheath temperatures.
Technical Specifications
Width Range: 1″ to 4″
Length Range: 2″ to 36″
Terminal Options:
Staggered terminals (standard)
Terminals available in-line or across at both ends upon request
Max. Recommended Sheath Temperature: Up to 350°C
🔍 Available Types of Strip Heaters
We offer multiple types of strip heaters to suit different industrial needs:

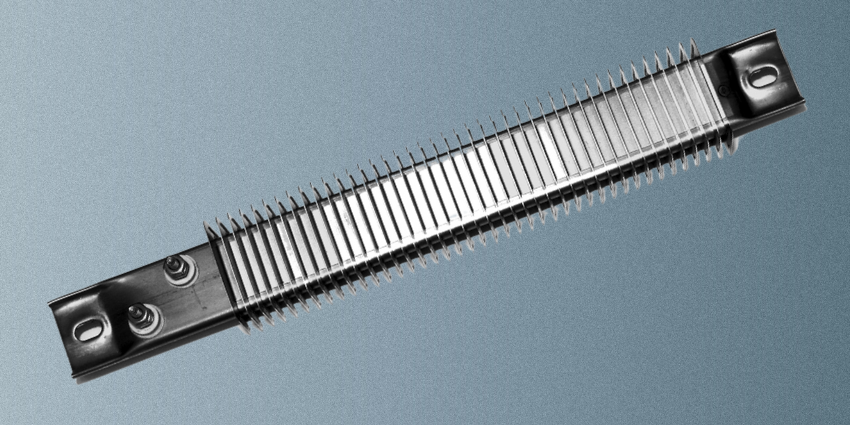

Finned Strip Heaters – For maximum surface area and heat dissipation
Refractory Insulated Strip Heaters – For higher temperature applications
Heavy-Duty Refractory Insulated Strip Heaters – Designed for robust, long-duration usage in demanding settings
📞 Need a Custom Strip Heater Solution?
We design and manufacture both standard and customized strip heaters based on your process requirements. Contact our technical team for expert guidance, specification support, and a prompt quote.
Reach out today for high-performance strip heaters that meet your industrial heating demands efficiently and reliably.
Strip Heaters (refractory insulated)
| Type | Length | Width | Thick | Fixing Holes | Watts |
|---|---|---|---|---|---|
| CRSH/12/500 | 305 | 38MM | 9.5 T | 280 MM | 500 |
| CRSH/15/500 | 380 | 38MM | 9.5 T | 355 MM | 500 |
| CRSH/18/750 | 457 | 38MM | 9.5 T | 432 MM | 750 |
| CRSH/21/1000 | 533 | 38MM | 9.5 T | 508 MM | 1000 |
| CRSH/24/1000 | 610 | 38MM | 9.5 T | 585 MM | 1000 |
| CRSH/27/1000 | 685 | 38MM | 9.5 T | 660 MM | 1000 |
| CRSH/30/1500 | 762 | 38MM | 9.5 T | 735 MM | 1500 |
| CRSH/36/2000 | 915 | 38MM | 9.5 T | 890 MM | 2000 |
Strip Heaters (Refractory Insulated) Heavy Duty
| Type | Length | Width | Thick | Fixing Holes | Watts |
|---|---|---|---|---|---|
| CRSH/HD/12/500 | 305 | 45MM | 11 T | 280 MM | 500 |
| CRSH/HD/15/500 | 380 | 45MM | 11 T | 355 MM | 500 |
| CRSH/HD/18/750 | 457 | 45MM | 11 T | 432 MM | 750 |
| CRSH/HD/21/500 | 533 | 45MM | 11 T | 508 MM | 1000 |
| CRSH/HD/24/500 | 610 | 45MM | 11 T | 585 MM | 1000 |
| CRSH/HD/27/500 | 685 | 45MM | 11 T | 660 MM | 1000 |
| CRSH/HD/30/500 | 762 | 45MM | 11 T | 735 MM | 1500 |
| CRSH/HD/36/500 | 915 | 45MM | 11 T | 890 MM | 2000 |

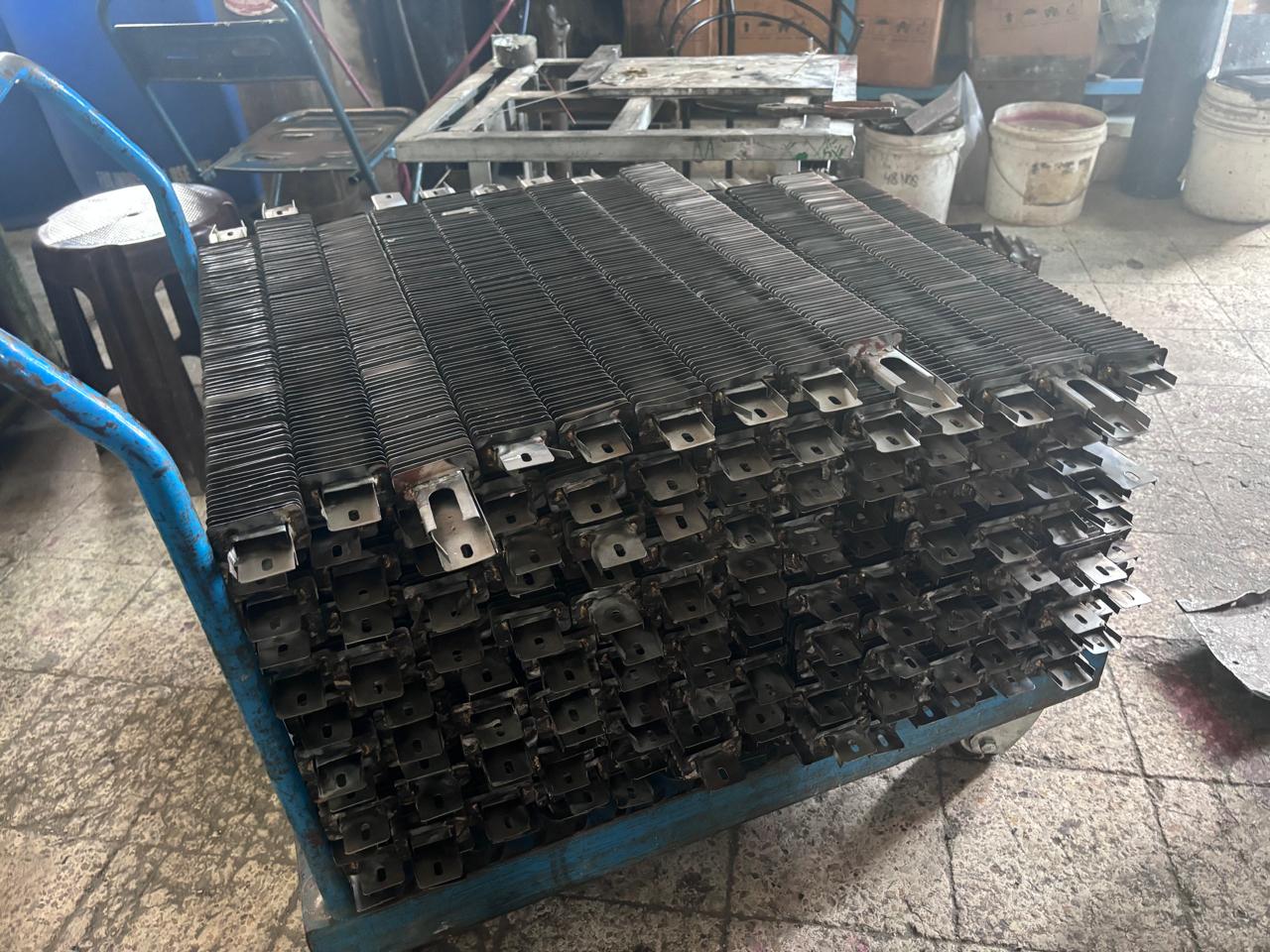

Finned Strip Heaters
| Type | Length | Width | Thick | Fixing Holes | Watts |
|---|---|---|---|---|---|
| CFSH/228 / (9) | 228 | 65MM | 35 T | 203 | 500W |
| CFSH/305 / (12) | 305 | 65MM | 35 T | 280 | 500/750W |
| CFSH/380 / (15) | 380 | 65MM | 35 T | 355 | 500/750/1000W |
| CFSH/457 /(18) | 380 | 65MM | 35 T | 355 | 500/750/1000W |
| CFSH/533 /(21) | 533 | 65MM | 35 T | 508 | 1000/1250W |
| CFSH/610 /(24) | 610 | 65MM | 35 T | 585 | 1000/1250/1500W |
| CFSH/686 /(27) | 686 | 65MM | 35 T | 661 | 1000/15000/2000W |
| CFSH/762 /(30) | 762 | 65MM | 35 T | 737 | 1000/2000/3000W |
| CFSH/838 /(33) | 838 | 65MM | 35 T | 813 | 2000/2500/3000W |
| CFSH/915 /(36) | 915 | 65MM | 35 T | 890 | 2000/3000W |
| CFSH/1066 /(42) | 1066 | 65MM | 35 T | 1041 | 3000W |
| CFSH/1220 /(48) | 1220 | 65MM | 35 T | 1195 | 3000/3500/4000W |
