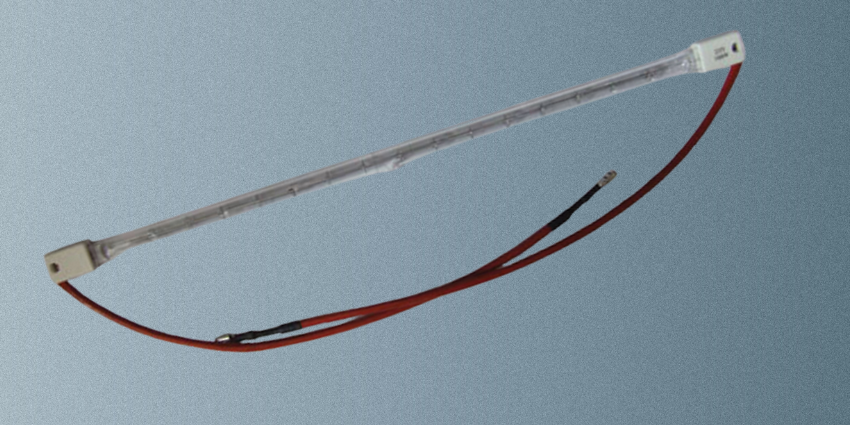

VICTORY Short Wave Infrared Lamps

Precision Infrared Heating for Industrial Efficiency

Victory’s short wave infrared (IR) lamps are designed to deliver fast, uniform, and energy-efficient heating across various industrial and commercial applications. Engineered using high-quality quartz and advanced coating technologies, these IR lamps offer superior performance in heat transfer, glare reduction, and mechanical stability.

Understanding Infrared Radiation (IR)

Infrared radiation is part of the electromagnetic spectrum, with wavelengths ranging from 760 nm (0.76 µm) to 1 mm—longer than visible light but shorter than microwaves. The IR spectrum is categorized into:

Short Wave IR
Medium Wave IR
Long Wave IR

Short wave IR penetrates deeper, ensuring uniform and rapid heating. Maximum efficiency is achieved when the lamp’s emission spectrum matches the absorption properties of the material being heated.

While part of the IR radiation reflects off surfaces, the rest is either absorbed or transmitted through the material, depending on its properties.

Types of Victory Short Wave Infrared Lamps

We offer a wide range of short wave IR lamps tailored to specific performance needs:
Clear Lamps: Transparent quartz tubes delivering maximum infrared output.
Reflector Coated Lamps: White ceramic coating projects the majority of heat forward, enhancing focused heating.
Gold Coated Lamps: Dichroic gold coating minimizes glare and adds a distinctive gold tint when the lamp is off.
Jacketed Lamps: Enclosed in a quartz sleeve for additional safety in sensitive environments.
Neutral Density Lamps: Feature a glare-reducing sleeve; emit a warm orange glow when in use.
Twin Tube Lamps: Made with premium quartz glass, these lamps provide high radiation intensity and exceptional mechanical stability. Available with gold reflector coating for improved directionality.

Technical Specifications

Power Range: From 2000W to 3800W

Base Options:

R7S (Round Cap)
SK15
Metal or Strap Terminals

Available in linear configurations for customizable heating systems

Applications of Short Wave Infrared Lamps Victory IR lamps are ideal for a wide range of industrial heating processes:

PET Preform Heating
Drying Water-Based Inks (Printing Presses)
Paint Baking and Powder Coating Curing
Screen Printing Ink Curing on Textiles
Adhesive Drying in Paper Processing
Moisture Drying in Paper Mills
Shrink Wrapping and Packaging
Food Warming in Hospitality
Water Evaporation in Humidifiers
Soldering & Semiconductor Industry Heating

Infra Red Heaters - Victory Lighting UK

S. No.	Wattage	Voltage	Overall length in mm	Heated length in mm	Tube	Ends	Part number
1	500	230	133	80	GOLD	R7S w/o leads	64235070
2	300	240	117	65	CLEAR	R7S	64243011
3	500	180	216	176	CLEAR	RECT (SK15)	64185020
4	500	230	297	242	GOLD	R7S w/o leads	64235073
5	500	240	213	150	COATED	RECT (SK15)	64245052
6	500	240	626	508	COATED	RECT (SK15)	64245055
7	500	415	626	508	COATED	RECT (SK15)	64415050
8	700	220	550	480	COATED	RECT (SK15)	64227051
9	800	220	550	480	CLEAR	RECT (SK15)	64228021
10	850	240	675	610	COATED	RECT (SK15)	64248550
11	1000	230	275	200	COATED	RECT (SK15)	64231055
12	1000	230	297	242	GOLD	R7S w/o leads	64231070
13	1000	230	302	247	GOLD	R7S w/o leads	64231071
14	1000	230	352	280	COATED	RECT (SK15)	64231053
15	1000	230	450	385	NDA	RECT (SK15)	64231027
16	1000	230	526	460	RUBY	RECT (SK15)	64241034
17	1000	230	626	560	CLEAR	R7S	6423102D
18	1000	240	350	280	CLEAR	R7S	64241023
19	1000	240	350	280	GOLD	R7S w/o leads	64241079
20	1000	240	352	280	GOLD	RECT (SK15)	64241072
21	1000	240	370	270	COATED	STRAP	64241053
22	1000	240	526	460	GOLD	RECT (SK15)	6424107B
23	1000	240	626	508	COATED	RECT (SK15)	6424105F
24	1000	240	675	610	CLEAR	R7S	6424102E
25	1000	250	900	835	COATED	RECT (SK15)	64251050
26	1000	400	370	270	COATED	STRAP	64401052
27	1000	400	840	775	COATED	RECT (SK15)	64401057
28	1000	415	352	280	COATED	RECT (SK15)	64411051
29	1000	415	352	280	CLEAR	RECT (SK15)	64411023
30	1000	415	352	280	COATED 90 X 2	RECT (SK15)	64411052
31	1000	415	498	420	CLEAR	R7S w/o leads	64411024
32	1000	415	626	560	CLEAR	R7S	64411021
33	1000	415	626	560	COATED 90 X 2	RECT (SK15)	64411053
34	1000	415	1030	960	COATED	RECT (SK15)	64411054
35	1000	480	352	280	COATED	RECT (SK15)	64481053
36	1100	230	225	150	COATED	RECT (SK15)	64231150
37	1100	230	500	437	NDA	RECT (SK15)	64231120
38	1100	230	526	460	RUBY	R7S w/o leads	64231134
39	1200	144	222	157	COATED	RECT (SK15)	64141251
40	1200	220	550	470	NDA	RECT (SK15)	64221225
41	1200	220	650	580	NDA	RECT (SK15)	64221227
42	1200	220	650	600	CLEAR	RECT (SK15)	64221229
43	1200	230	750	685	COATED	RECT (SK15)	64231257
44	1450	415	498	430	COATED	RECT (SK15)	64411450
45	1500	230	352	280	COATED	RECT (SK15)	64231557
46	1500	230	440	375	COATED	RECT (SK15)	54231552
47	1500	230	475	408	NDA	RECT (SK15)	64231521
48	1500	230	626	560	COATED	RECT (SK15)	64231556
49	1500	230	675	610	COATED	RECT (SK15)	64231552
50	1500	230	1120	1050	COATED	RECT (SK15)	6423155D
51	1500	240	352	280	GOLD	RECT (SK15)	64241571
52	1500	240	439	360	COATED	R7S	64241550
53	1500	240	785	720	RUBY	RECT (SK15)	6424153B
54	1500	360	443	360	COATED	R7S	64361550
55	1500	400	366	306	COATED	RECT (SK15)	64401551
56	1500	400	439	360	COATED	R7S	64401550
57	1500	415	352	280	COATED	RECT (SK15)	64411552
58	1500	415	352	280	COATED 90 X 2	RECT (SK15)	64411553
59	1500	415	354	280	COATED	RECT (SK15)	6441155B
60	1500	415	366	306	CLEAR	RECT (SK15)	64411558
61	1500	415	500	430	COATED	RECT (SK15)	64411555
62	1500	415	515	457	CLEAR	R7S w/o leads	64411521
63	1500	415	565	508	NDA	R7S w/o leads	64411520
64	1500	415	568	508	COATED 90 X 2	RECT (SK15)	64411559
65	1500	415	574	508	COATED	RECT (SK15)	6441155F
66	1500	415	616	540	NDA	R7S w/o leads	64411522
67	1500	415	626	508	COATED	RECT (SK15)	64411551
68	1500	415	626	556	COATED	RECT (SK15)	64411556
69	1500	415	692	616	CLEAR	R7S w/o leads	64411523
70	1500	415	787	720	COATED	RECT (SK15)	6441155H
71	1500	415	895	820	CLEAR	R7S w/o leads	64411524
72	1500	415	1120	1050	COATED	RECT (SK15)	6441155G
73	1600	144	222	157	COATED	RECT (SK15)	64141653
74	1600	230	222	157	COATED	RECT (SK15)	64231652
75	1600	240	498	435	CLEAR	R7S	64241620
76	1600	240	500	435	CLEAR	RECT (SK15)	6424162C
77	1600	415	498	435	CLEAR	R7S	64411622
78	1600	415	498	435	CLEAR	R7S w/o leads	64411620
79	2000	230	275	200	COATED	RECT (SK15)	64232059
80	2000	230	352	280	CLEAR	RECT (SK15)	54232025
81	2000	230	360	290	COATED	RECT (SK15)	6423205D
82	2000	230	626	508	COATED	RECT (SK15)	64232053
83	2000	230	675	610	COATED	RECT (SK15)	6423205P
84	2000	230	730	660	COATED	RECT (SK15)	54232056
85	2000	230	785	715	COATED	RECT (SK15)	64232055
86	2000	230	830	780	COATED	RECT (SK15)	54232054
87	2000	230	950	880	CLEAR	R7S	6423202H
88	2000	230	980	910	COATED	RECT (SK15)	6423205C
89	2000	230	1070	1000	COATED	RECT (SK15)	54232055
90	2000	230	1120	1000	COATED	RECT (SK15)	6423205J
91	2000	240	352	270	COATED	RECT (SK15)	64242055
92	2000	240	626	560	CLEAR	R7S	54242020
93	2000	240	845	800	CLEAR	R7S w/o leads	6424202E
94	2000	240	1120	1000	CLEAR	R7S	64242028
95	2000	380	488	410	COATED	STRAP	64382053
96	2000	380	495	400	COATED	RECT (SK15)	64382054
97	2000	380	508	410	COATED	STRAP	64382051
98	2000	400	352	280	COATED	RECT (SK15)	64402053
99	2000	400	366	306	COATED	RECT (SK15)	64402052
100	2000	400	380	320	COATED	RECT (SK15)	64402057
101	2000	400	439	360	COATED	R7S	64402051
102	2000	400	840	775	COATED	RECT (SK15)	6440205D
103	2000	415	366	306	COATED 90 X 2	RECT (SK15)	64412057
104	2000	415	415	350	COATED	RECT (SK15)	6441205K
105	2000	415	415	350	COATED 90 X 2	RECT (SK15)	6441205L
106	2000	415	500	430	COATED	RECT (SK15)	6441205A
107	2000	415	538	420	COATED	RECT (SK15)	6441205P
108	2000	415	568	508	COATED 90 X 2	RECT (SK15)	64412058
109	2000	415	626	508	COATED	RECT (SK15)	64412050
110	2000	415	626	508	CLEAR	R7S	64412023
111	2000	415	626	560	COATED 90 X 2	RECT (SK15)	6441205B
112	2000	415	626	556	COATED	RECT (SK15)	64412059
113	2000	415	710	640	COATED	RECT (SK15)	64412054
114	2000	415	710	640	COATED 90 X 2	RECT (SK15)	64412055
115	2000	415	738	672	COATED	RECT (SK15)	6441205J
116	2000	415	785	715	COATED	RECT (SK15)	6441205R
117	2000	415	835	780	COATED	RECT (SK15)	6441205N
118	2000	415	950	880	COATED	RECT (SK15)	6441205U
119	2000	415	1020	950	COATED	RECT (SK15)	6441205M
120	2000	415	1030	960	COATED	RECT (SK15)	6441205C
121	2000	415	1120	1000	COATED	RECT (SK15)	6441205H
122	2000	440	352	280	COATED 90 X 2	RECT (SK15)	64442050
123	2000	440	450	380	COATED	RECT (SK15)	64442051
124	2400	240	750	675	CLEAR	RECT (SK15)	64242421
125	2400	400	250	C SHAPE	COATED	PIN	64402450
126	2500	230	360	290	COATED	RECT (SK15)	64232551
127	2500	240	352	280	COATED	RECT (SK15)	64242550
128	2500	240	729	670	CLEAR	R7S	64242523
129	2500	400	250	C SHAPE	CLEAR	PIN	6440252B
130	2500	400	250	C SHAPE	COATED	PIN	6440255N
131	2500	400	352	280	COATED	RECT (SK15)	64402551
132	2500	400	377.5	315	CLEAR	VK15	6440252G
133	2500	400	377.5	315	COATED	RECT (SK15)	6440255T
134	2500	400	380	320	COATED	RECT (SK15)	64402555
135	2500	400	380	320	CLEAR	VK15	64402525
136	2500	400	380	320	COATED	RECT (SK15)	6440255J
137	2500	400	380	320	COATED , ECO	VK15	6440255H
138	2500	400	380	320	COATED	VK15	6440255K
139	2500	400	590	505	COATED	R7S	64402557
140	2500	400	598	505	COATED	R7S	64402556
141	2500	415	729	670	CLEAR	R7S	64412520
142	3000	230	352	280	CLEAR	RECT (SK15)	64233025
143	3000	230	360	290	COATED	RECT (SK15)	64233052
144	3000	230	675	610	COATED	RECT (SK15)	6423305B
145	3000	230	785	715	COATED	RECT (SK15)	64233050
146	3000	230	830	770	COATED	RECT (SK15)	6423305A
147	3000	230	1120	1000	COATED	RECT (SK15)	64233059
148	3000	240	352	280	COATED	RECT (SK15)	64243055
149	3000	400	352	280	COATED	RECT (SK15)	64403050
150	3000	400	377.5	315	CLEAR	VK15	6440320J
151	3000	400	377.5	315	COATED	RECT (SK15)	6440305U
152	3000	400	380	320	COATED	RECT (SK15)	64403055
153	3000	400	380	320	CLEAR	VK15	64403027
154	3000	400	380	320	COATED , ECO	VK15	6440305G
155	3000	400	380	320	COATED	VK15	6440305K
156	3000	400	380	320	COATED	RECT (SK15)	6440305H
157	3000	400	598	505	COATED	R7S	64403054
158	3000	400	750	680	COATED	RECT (SK15)	64403059
159	3000	415	366	306	COATED 90 X 2	RECT (SK15)	64413053
160	3000	415	480	420	COATED 90 X 2	RECT (SK15)	64413059
161	3000	415	568	508	COATED 90 X 2	RECT (SK15)	64413052
162	3000	415	626	508	COATED	RECT (SK15)	64413055
163	3000	415	738	672	COATED 90 X 2	RECT (SK15)	64413054
164	3000	415	830	770	COATED	RECT (SK15)	64413057
165	3000	415	875	765	CLEAR	R7S	64413022
166	3000	415	1020	950	COATED	RECT (SK15)	64413056
167	3000	440	450	380	COATED	RECT (SK15)	64443050
168	3500	400	250	C SHAPE	CLEAR	PIN	64403522
169	3500	400	250	C SHAPE	COATED	PIN	6440355A
170	3500	400	250	C SHAPE	COATED	PIN	64403551
171	3500	400	380	320	COATED	RECT (SK15)	64403556
172	3500	415	1300	1240	CLEAR	R7S	64413520
173	3800	415	1120	1000	CLEAR	R7S	64413820
174	4000	230	830	770	COATED	RECT (SK15)	64234050
175	4000	400	250	C SHAPE	COATED	PIN	64404050
176	4000	400	250	C SHAPE	CLEAR	PIN	64404023

TWIN TUBE IR LAMPS

S. No.	Wattage	Voltage	Overall length in mm	Tube	Part numb
1	3500	415	800	ONE SIDE	69413556
2	3500	400	900	ONE SIDE	69403550
3	3500	415	1120	ONE SIDE	69413551
4	4000	400	800	ONE SIDE	69404059
5	4200	415	1125	BOTH SIDES	69414251
6	4200	400	1500	ONE SIDE	69404250
7	5400	400	1200	BOTH SIDES	69405450
8	6000	480	1125	ONE SIDE	69486050
9	6000	400	1150	BOTH SIDES	69406051
10	6950	400	900	BOTH SIDES	69406951

Why Choose India Heaters?

Customized Infrared Heating Solutions
Victory specializes in the manufacture and design of custom short wave infrared lamps tailored to your specific application and equipment. Contact our team for expert support, tailored specifications, and fast delivery of high-efficiency IR lamps.
